Mitsubishi Single-Zone Mini-Split in Pittsburg
Mitsubishi single-zone mini-split outdoor unit installed for a home in Concord.
Installation of a Mitsubishi Electric 18,000 BTU single-zone ductless mini-split system in Concord. The outdoor unit was mounted on an elevated equipment base with the refrigerant lines protected in line-hide and the electrical disconnect installed nearby. The inverter-driven system provides both heating and cooling with precise temperature control and efficient part-load operation.
Project details
Recommendation and why
A Mitsubishi single-zone ductless system was selected to provide dedicated heating and cooling with inverter-driven capacity control and efficient year-round operation.
Installation challenges and work performed
Installed the outdoor unit on an elevated equipment base, connected the matching indoor wall-mounted unit, and routed the 1/4 in. x 1/2 in. refrigerant line set through protective line-hide. Electrical service and disconnect were completed at the outdoor unit.
Equipment details
Mitsubishi Electric M-Series single-zone ductless system with MUZ-GS18NA outdoor unit and MSZ-GS18NA indoor unit. 18,000 BTU nominal capacity, 230V electrical, inverter-driven compressor, approximately 21.6 SEER, Energy Star certified, with heating operation down to approximately -4°F and dry-mode dehumidification.
Observed result
Completed single-zone mini-split installation with the outdoor equipment securely mounted, line set protected, and the system configured to provide both heating and cooling.
More recent work

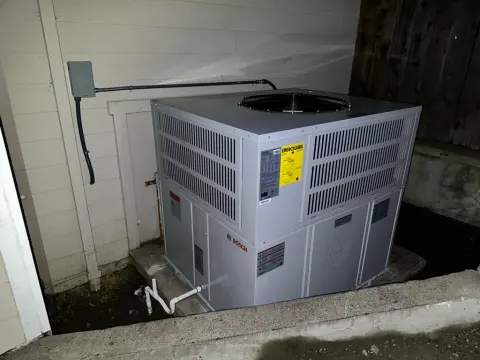

Bosch Packaged Heat Pump with Upstairs and Downstairs Zoning in Concord
Replaced an existing HVAC system with a Bosch 4-ton inverter packaged heat pump and added upstairs/downstairs zoning. The Concord homeowner found Galaxy through a rebate website and wanted heat pump heating and cooling with separate temperature controls for each floor.
Completed January 19, 2024

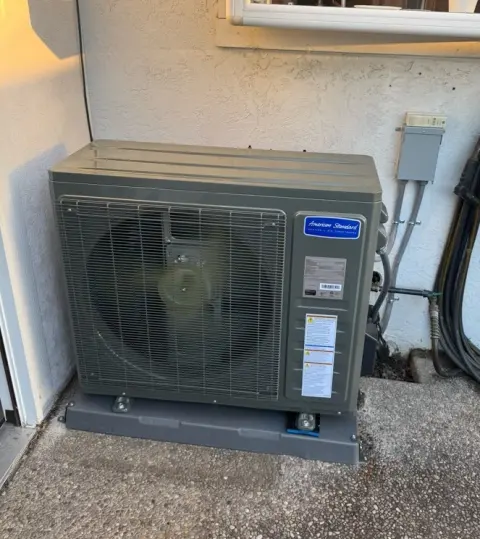

View projectAmerican Standard 16 seer2 Inverter Air Conditioner and 80% 2-stage variable speed furnace installation in Concord
